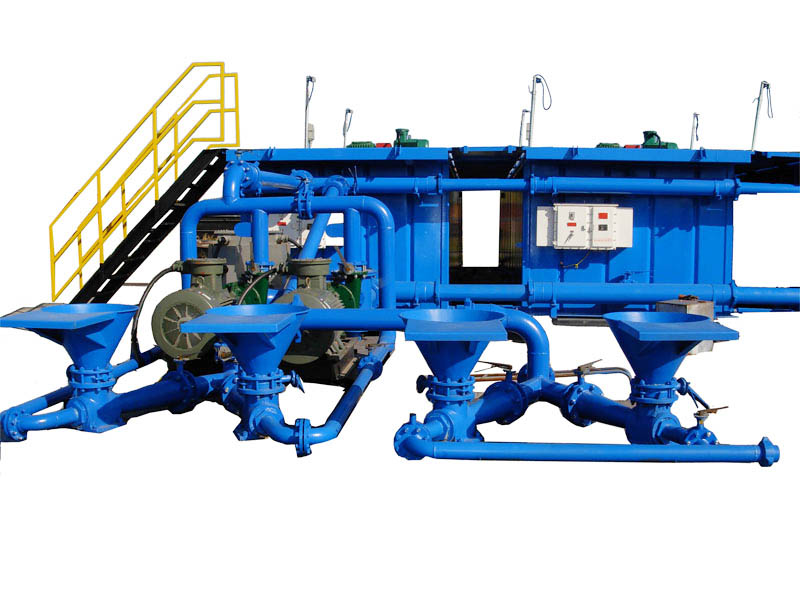

FD Petrol offers complete line equipment for drilling mud mixing ,including mud mixing tank, mixing pump, mixing hopper, shearing pump, mud agitators and mud guns to facilitate the operators with changing or maintain drilling fluids density or viscosity

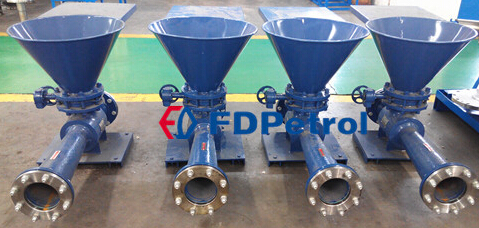

Betonies, polymer or chemical compound additives are added to venturi hopper at speed of 40kg/min which is stored in the mud mixing tank, mud agitator, mud guns and shearing pump are added to assist in achieving the best suitable mud properties.

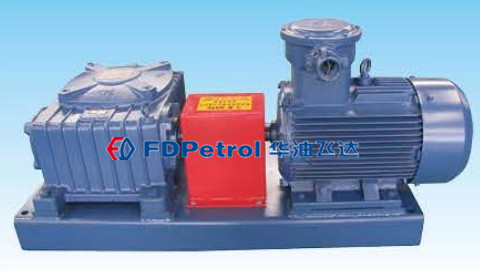

FD Petrol Mud Agitators Spec

Model

NJ5.5

        NJ7.5

   NJ11

NJ15

NJ18.5

Motor Power

    5.5KW

      7.5KW

11KW

15KW

  18.5KW

Impeller

1

 2

2

  2

       2

Upper Impeller

Φ760mm

     Φ760mm

Φ850mm

Φ920mm

   Φ1000mm

Down  Impeller

  N/A

     Φ760mm

Φ500mm

Φ500mm

Φ500mm

Speed

   73rpm

73rpm

73rpm

73rpm

   73rpm

Dimension

1090*640*570mm

1275*660*630mm

1320*730*630mm

Weight

392KG

418KG

472KG

535KG

640KG

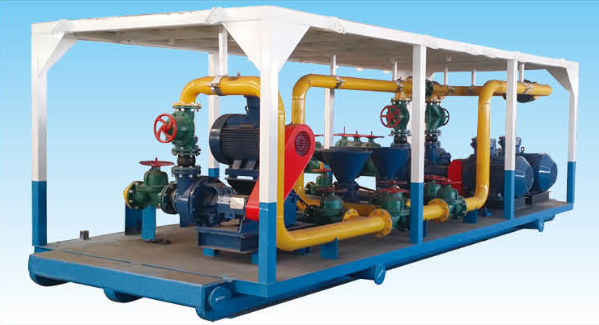

Shearing pump and venturi hopper can be mounted on a single separated skid or on the storage tank skid as a complete unit, which is more convenient in transportation.


Drilling mud mixing system not only for solids control mud mixing but also for liquid mud plant project for mixing and storing drilling fluids for oil and gas exploration. The liquid mud plant includes a skid mounted mixing tank assembly, a skid mounted pump assembly, a plurality of nestable storage tanks, and a piping assembly.
